Background
The European Union’s Central Electronic System of Payment information (CESOP) specifies a strict reporting obligation on payment service providers, including banks and payment institutions. To comply with these new requirements, organizations must collect, validate, transform, and submit large volumes of transaction data to their respective Tax Authorities (TAs). However, CESOP’s file-based communication interface, country-specific variations, and file size limits make it challenging to build a robust, scalable reporting solution.
Knowing these challanges we got the assignment from our trusted client to develop a custom software solution that addresses these requirements all in one. Designed for global financial institutions operating across multiple EU jurisdictions, this solution enables efficient data ingestion, validation, transformation, and submission to each country's TA, meeting CESOP standards and country-specific integration varieties.

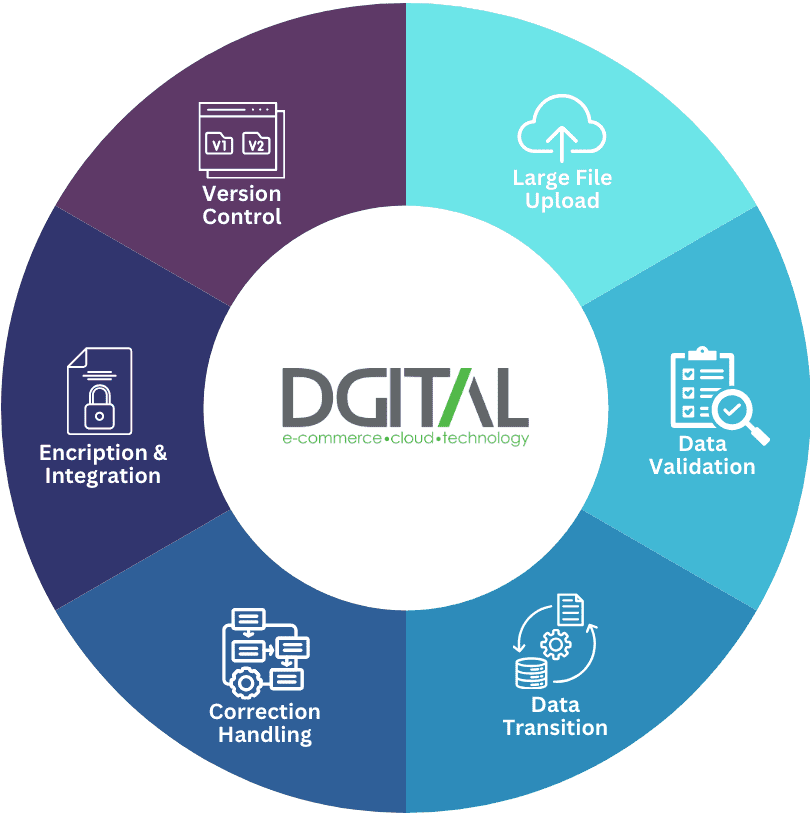

The primary challanges in developing the CESOP reporting solution included:
-
1. Handling Large File Uploads:PSPs often need to upload substantial XML and CSV files, sometimes exceeding 1 GB and millions of transactions. Traditional cloud proxies, such as Cloudflare, often limit maximum upload sizes, requiring alternate methods for large file transfers. Ensuring efficient upload, processing, and memory management for these massive files posed a significant technical challenge.
-
2. Efficient Data Validation:Real-time estimation of final XML file size was necessary to comply with country-specific maximum file size constraints, however ensuring the accuracy and integrity of large datasets without excessive memory consumption is crucial.
-
3. Country-Specific Data Transformation:Adapting data to meet varying CESOP reporting formats across different EU countries. Local TAs require additional or modified data points and may enforce different file-size caps.
-
4. Correction Flow Management:Simplifying the process for users to correct errors identified during data submission involves partial rejections, full rejections, and possible file deletions. Clients needed a user-friendly approach to rectify errors and resubmit only the impacted data.
-
5. Encryption and Integration with Local Tax Authorities (TA):Certain TAs use outdated and niche encryption methods that can be challenging for a .NET-based cloud project. Furthermore, it is not uncommon for TA systems to be inconsistent, poorly documented, and completely lacking test environments, making integration significantly more time-consuming.
-
6. Version Control:With frequent schema updates the system had to quickly adapt to changing data structures and submission protocols. Clients required country-specific version controls to accommodate multiple Tax Authority requirements simultaneously.
To address these challanges, DGITAL Labs implemented the following solutions:
-
1. Direct Azure Blob Storage Uploads:Bypassing traditional upload limitations, large files are uploaded directly to Azure Blob Storage, accommodating files up to 1 GB or more. This approach also improves transfer speed and ensures a seamless user experience.
-
2. Stream-Based Data Processing:Utilizing chunk-based stream processing allows efficient validation and transformation of large files, minimizing memory usage and enhancing performance. This way the validation can occur on-the-fly, and the system can identify issues without loading the entire file into memory.
-
3. Country-Specific Data Transformation:Implementing stream-based processing enables on-the-fly data transformation as well to meet specific reporting requirements of various TAs. By leveraging a custom low-level XML writer, the solution can write to the output stream without creating large in-memory strings, thus preserving significant server resources.
-
4. Correction Flow Management:We designed an intuitive user interface that surfaces only the most relevant error messages, enabling clients to self-correct data swiftly. This streamlined process reduces operational overhead and speeds up compliance.
-
5. Version Control:By allowing country-specific CESOP version management, the solution can quickly pivot when TAs introduce new formats. This ensures compliance continuity, even amid the “version chaos” that often arises from mid-year or uncoordinated regulatory updates.

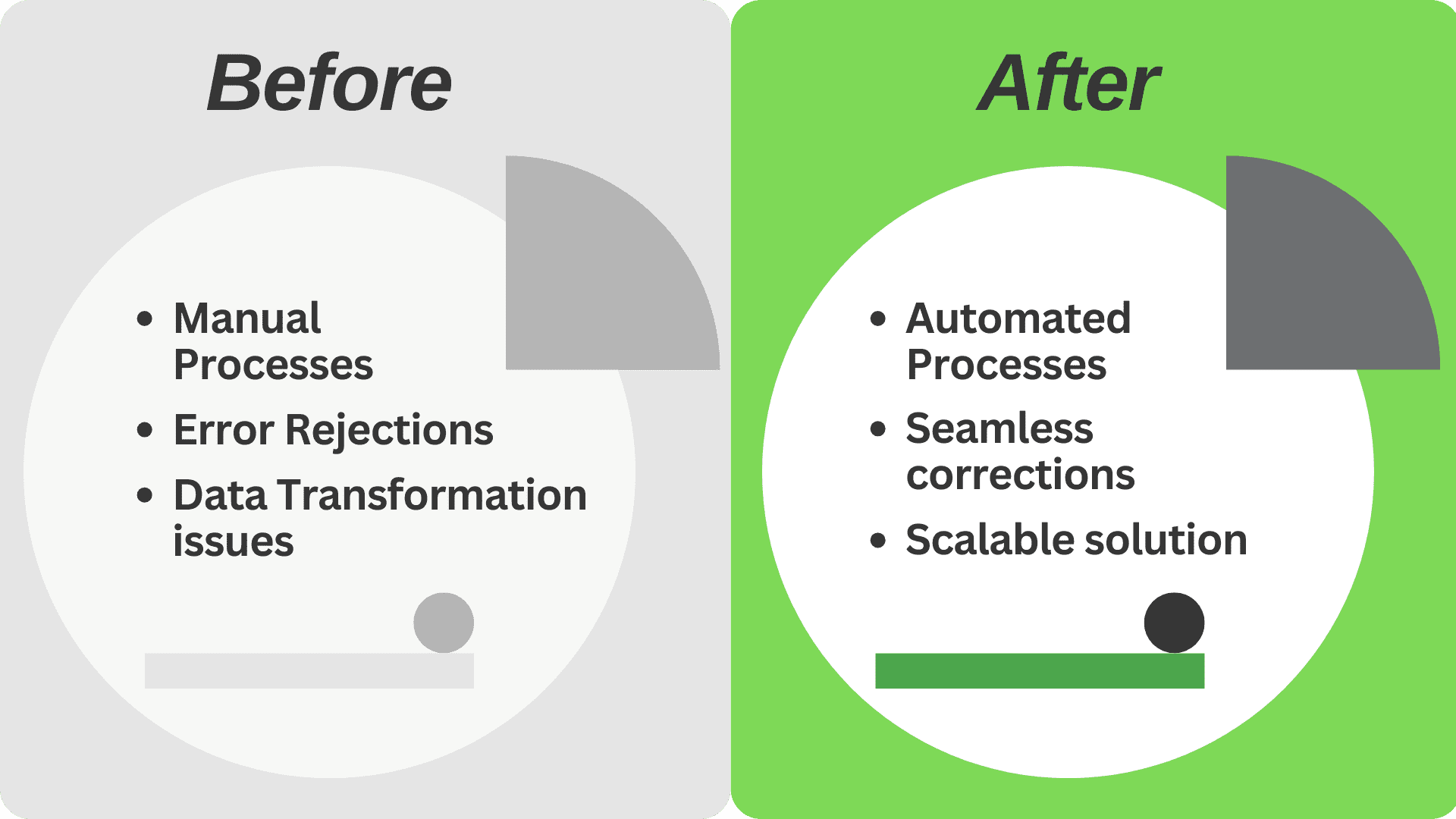

Outcome
DGITAL Labs’ custom CESOP reporting solution offers a fully integrated, high-performance compliance platform for the ever-evolving EU Challanges Addressed
The development resulted in a robust and scalable cloud-based CESOP reporting solution that efficiently handles large data volumes, ensures compliance with diverse country-specific requirements, and provides a user-friendly interface for managing corrections and version control. This solution empowers banks and payment institutions to meet their CESOP reporting obligations effectively, thereby contributing to the EU’s efforts in combating VAT fraud in cross-border e-commerce.
-
• Scalability:Clients can reliably handle massive file uploads—from tens of MBs to multiple GBs—without performance degradation.
-
• Reduced Complexity:Automated transformations and validations lessen the compliance burden, allowing focus on core financial services instead of technical intricacies.
-
• Speed and Efficiency:Streaming-based processing enables real-time error detection, improving turnaround times for quarterly and ad-hoc reporting cycles.
-
• Robust Error Handling:The correction workflow ensures minimal disruption by isolating only erroneous records and quickly steering them through partial or full re-submissions.
-
• Regulatory Adaptability:With a flexible versioning system, the solution remains future-proof, adjusting quickly to new or revised schemas from multiple jurisdictions.
About Our Partner
Our partner is a leading tax and compliance advisory firm that delivers comprehensive solutions for multinational organizations. Leveraging specialized knowledge and advanced digital tools, this firm empowers clients across diverse sectors to successfully handle complex regulatory obligations and optimize their overall tax strategies.
They operate a centralized online tax portal that allows clients to manage their VAT, IOSS, OSS, EPR and U.S. Sales Tax obligations in over 40 countries. Additionally, they support their clients with an experienced, multilingual team of tax experts.
In recent years in IT Operations life has changed a lot. It has come a long way from manually running shell scripts to fully automated DevOps processes, supported by containerized cloud environments. People started to realize that instead of drag-and-drop interfaces, everything can be defined as code, primarily through domain-specific languages (DSLs) like CloudFormation, ARM, or Terraform. This shift led to the term "DevOps" with the implication that, if everything is code, traditional Ops might no longer be needed.
However, developers, accustomed to their familiar programming languages and fast local environments, were often reluctant to adopt unfamiliar DSLs. As a result, Operations teams were pushed to adopt DevOps practices, but with limited success. Today, we’re seeing a new trend where programming languages are starting to replace DSLs (e.g. Pulumi, Cloud CDK, Dagger), and practices like GitOps and Continuous Deployment are becoming mainstream. The automation of infrastructure has also driven the rise of Microservices and Monoliths has fallen from grace.
Imagine being tasked with transforming an existing on-premise legacy high-volume e-commerce application into a cloud-based microservices architecture (with 50+ services), all while maintaining the same level of agility and enabling continuous delivery and deployment. If each service is placed in its own Git repository and developed by separate teams, the resulting complexity can quickly become overwhelming, potentially paralyzing the entire delivery process—often leading to project failure. So, how can we tackle this challenge? What strategies can we adopt to manage the complexity effectively? And ultimately, what is the Desired State of IT operations having Microservices?
The key idea to manage complexity can be traced back to 2004, when Mark Burgess, a theoretical physicist, introduced the concepts of Desired State and Convergent Operators within Promise Theory. Starting with CFEngine and later evolving through systems like Kubernetes (Borg by Google) and GitOps, this idea has shaped modern infrastructure management.
At its core, the approach emphasizes that a complex system can be constructed from simpler, autonomous agents. Each agent operates independently, making promises that may provide value to others. Together, these agents exhibit complex, emergent behaviors. Burgess was inspired by statistical mechanics, where individual atoms, governed by quantum mechanical principles, collectively give rise to complex Emergent Behaviors.
These autonomous agents could be envisioned as self-sufficient, resilient entities capable of adapting quickly to environmental changes or failures. The resiliance patterns or aspects - as coined by develpers - led to the appearance of Service Meshes and Sidecar Proxies in the 2010s. Just as in web development, where popular features introduced by third-party frameworks eventually become part of browser standards, Kubernetes and Service Meshes are evolving in a similar way. This evolution is evident in the emergence of the Gateway API (with constructs like HttpRoute and GatewayClass) and the rise of Sidecarless Meshes. There is also a growing effort to make these agents as environment-agnostic as possible. While achieving this level of abstraction remains a challenge, technologies like WASI (WebAssembly System Interface) offer a promising direction forward.
GitOps principles
- 1. Declarative: a system managed by GitOps must have its Desired State expressed declaratively.
- 2. Versioned and Immutable: desired state is stored in a way that enforces immutability, versioning and retains a complete version history.
- 3. Pulled Automatically: agents automatically pull the desired state declarations from the source.
- 4. Continuously Reconciled: agents continuously observe actual system state and attempt to apply the desired state.
It's no coincidence that Git and Kubernetes are perfect fit with GitOps principles. Kubernetes Custom Resource Definitions (CRDs) serve as ideal representations of the Desired State. Git, with its versioned and immutable commits, provides a reliable source of truth for these CRDs. By sourcing CRDs directly from a Git repository, custom Kubernetes controllers can continuously monitor changes in Git, creating or updating CRDs as needed. These controllers then reconcile the cluster state with the Desired State defined in the CRDs, ensuring the system remains consistent. All of this happens automatically, making GitOps a powerful approach for managing infrastructure and applications declaratively.

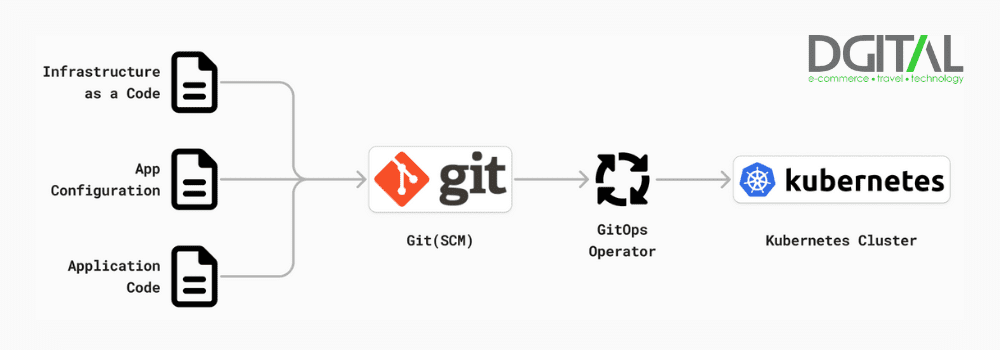

In an ideal future, the only responsibility for developers and operators is to update Git repositories. By simply creating a Pull Request, the process of reviewing, quality control, and deployment to production becomes fully automated. This approach promises speed, security, and cost efficiency, allowing bug fixes to reach production in mere minutes. Modern DevOps tools like GitLab, ArgoCD, and Flux are paving the way for this vision.

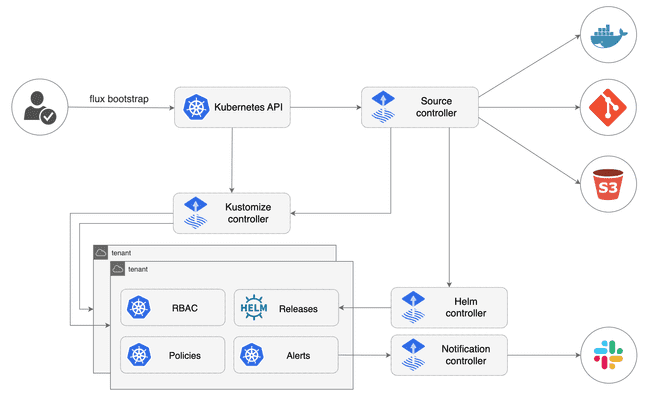

At Dgital we have built a custom solution leveraging these concepts and tools, enabling canary deployments across more than 50 services. In practice we had these challenges to be solved:
Git excels at many tasks, including versioning, merging, and auditing. However, frequent automatic updates can often result in conflicts that require manual resolution. As part of implementing GitOps, we had to store certain states directly in CRDs, utilizing their optimistic locking mechanism to manage state consistency.
Editing Kubernetes YAML files directly is not ideal. We found that using frameworks like CDK8s produces better results, but adopting these tools can be challenging for those in daily operations. To address this, we developed an API to facilitate basic editing functions for these files, such as deploying a version, setting Canary to 40%, rolling back, or finalizing deployments. Additionally, we created a custom, user-friendly dashboard to make these API functions even easier to use.
Microservices projects often face the challenge of deploying everything at once or requiring developers to manage backward compatibility. These projects are typically stored in one or more monorepos, where handling and testing backward compatibility across multiple services can be extremely difficult, if not impossible.
Monorepo tools like NX, however, can calculate exactly which projects need to be deployed to a given environment. If a tool existed that could "jump" between commits, developers wouldn't need to worry about backward compatibility. Instead, their focus would be solely on maintaining consistency within the repository, which can be ensured through fast, automated test.

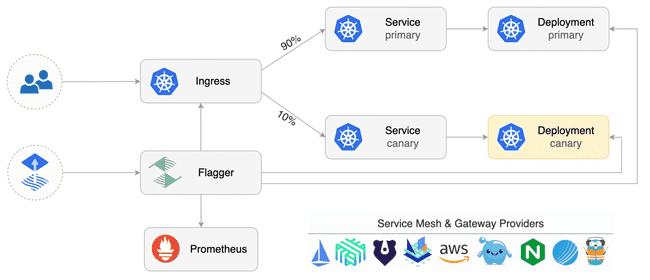

The real challenge arises when implementing Canary or Blue-Green deployments. During a release, traffic is split between the old and new versions, and when only a few services are changed, shared services must be able to differentiate between routing to the new and old versions. We were eventually able to solve this issue by using bucketing through Envoy Lua extensions.
Multi-service deployments are often not atomic and can result in user-facing failures that are difficult to diagnose, especially when caused by temporarily unaligned or unavailable services. To manage this complexity, teams typically rely on service meshes like Istio, Linkerd, or Cilium. However, Docker instances can consume significant resources, and service mesh sidecars add even more overhead. While Linkerd offers small and fast sidecars, they are not customizable, whereas Istio provides customization but with sidecars comparable in size to service containers. Fortunately, Linux eBPF capabilities have enabled sidecarless service meshes, with Istio's Ambient mode serving as a prime example of this approach.
Summary
It took several months to set up a working solution that met our original goals. Along the way, we experimented with and discarded many concepts. While this architecture may seem intimidating at first, and developers may initially hesitate to adopt it, the transparency and flexibility it provides in managing infrastructure make it extremely powerful and can led to real DevOps and Ops can transform into Platform Engineers.
As a general guideline, avoid using microservices unless they're absolutely necessary. However, if you can't avoid them, investing in DevOps is essential.
Links:
GitOps: https://medium.com/weaveworks/gitops-operations-by-pull-request-14e8b659b058
GitOps principles: https://opengitops.dev/
NX: https://nx.dev/
Kubernetes Custom Resources: https://kubernetes.io/docs/concepts/extend-kubernetes/api-extension/custom-resources/
AWS CDK: https://aws.amazon.com/cdk/
Cdk8s: https://cdk8s.io/
Flux: https://fluxcd.io/
Istio Ambient mode: https://istio.io/latest/docs/ambient/overview/
We have completed the development of the DeepX IBE Suite, which is not just a booking website but also a fare cache engine and a high-performance middleware layer that provides interfaces to any connected system. DeepX IBE Suite sits between the airline’s PSS and its sales channels, serving all required data transformation and custom needs.
This multi-functional solution enables start-up airlines to launch a sales website in only 2 months, saving them from the substantial hassle of developing their own IBE from the ground up.
For mature airlines, DeepX API and SDK can significantly reduce development and maintenance time in the case of various large projects such as PSS version upgrades, travel service provider integration, kiosk or mobile app introduction, NDC interface and else.
The engine is based on DGITAL's 10+ years of experience in the field and is a result of years of organic airline websites and PSS development for market-leading airlines.
Give us a call, and we will be happy to schedule a demo and present even more features.
We have recently introduced an AWS-based solution to one of our airline partner.
In the fast-paced and competitive airline industry, providing customers with accurate and up-to-date fare information is essential for ensuring a smooth booking experience. Fare caching is a powerful technique that can help airline websites maintain optimal performance and deliver real-time fare data efficiently. This article will explore the benefits and best practices of using fare cache on airline websites, as well as practical examples of its implementation.
Fare caching is the practice of storing flight prices and availability data in a temporary storage to improve the speed and reliability of flight search results on an airline's website. Instead of having to query the airline's reservation system for the latest pricing and availability data every time a customer searches for a flight, the airline stores this data in a cache that can be quickly accessed by the website. This enables airline websites to access and display fare information more quickly, reducing the need for repetitive requests to the PSS and minimizing the risk of slow performance while keeping the information up to date.
Benefits of Using Fare Cache on Airline Websites
Improved performance: By caching fare data, airline websites can deliver information more quickly, resulting in faster load times and a more seamless user experience.
Reduced server load: With fare caching, the number of requests to GDS or other fare sources is significantly reduced, minimizing server load and reducing the risk of downtime or slow performance during peak times.
Enhanced customer experience: Fare cache ensures that customers receive accurate and up-to-date fare information, which is crucial for making informed booking decisions.
Best Practices for Using Fare Cache
Determine appropriate caching algorithm: Fare cache is only effective if the data it contains is accurate and up-to-date. Airlines should regularly update their fare cache to ensure that customers have access to the latest pricing and availability information while also finding the optimal frequency to ensure system load savings. So the caching duration should strike a balance between data freshness and performance. Depending on the airline's booking volume, the frequency of updates can range from every few minutes to once a day.
Implement cache invalidation strategies: Regularly update the fare cache and remove outdated data to maintain accuracy and prevent potential performance issues. This means that when fare prices and availability change, the fare cache should be updated accordingly. This can be done by setting a time limit on how long data can stay in the cache, or by using an event-driven approach that invalidates the cache when specific conditions are met.
Use Multiple Cache Layers: To ensure that the fare cache is responsive and reliable, airlines should use multiple cache layers. The first layer can store the most frequently accessed data, while subsequent layers can store less frequently accessed data. This approach can help to reduce the load on the airline's reservation system while still providing fast and reliable search results for customers.
Use smart caching techniques: Implement advanced caching techniques, such as predictive caching, to anticipate user needs and pre-fetch fare data for popular routes or periods.
Monitor cache performance: Regularly analyze cache hit and miss ratios to identify areas for improvement and optimize caching strategies. By monitoring these metrics, airlines can also identify and address any issues with the fare cache before they impact customers.
Use cases for Fare Cache
Implementing fare cache on an airline website can provide several benefits for both the airline and its customers. Here are some of the key benefits.
Faster Search Results: Fare cache can significantly improve the speed of flight searches on an airline's website. By storing pricing and availability data in a cache, the website can quickly retrieve this information and display it to customers, reducing the time it takes to complete a booking.
Provide Fare Date to Third Parties: Fare cache can be used to provide data to third party systems like GDS, Metasearch or even ChatGPT to search and show accureate prices to their users and generate additional bookings.
Improved Reliability: Fare cache can also improve the reliability of flight search results. By storing data in a cache, the airline can reduce the load on its reservation system, which can help to prevent outages and other performance issues that could impact customers.
Reduced Costs: Implementing fare cache can also help airlines to reduce their costs. By reducing the load on their reservation system, airlines can avoid the need to invest in additional infrastructure to handle peak demand periods. This can help to improve the airline's profitability while still providing high-quality service to customers.
Join us at the World Aviation Festival
We are visiting the World Aviation Festival from the 5th - 6th October 2022 in Amsterdam. Drop us a line and meet there!
PSS System upgrade to expand multi-channel distribution
Expanding the distribution channels as an Airline is usually on the radar. Especially when travellers are more sensitive about making the decision about traveling and how much they spend on a leisure holiday. To able to effectively reach the desired target audience, retail companies need multiple sales channels, because customers has different purchase habits and preferences.
JetSMART has announced in April 2022, that they are teaming up with Amadeus to offer their services via Amadeus Travel Platform, however, to increase the number of sales channels and to make the most out of the integration, it was a reasonable decision to first upgrade its Passenger Service System (PSS) to the latest version, which have scaled the project into the next level.
We supported JetSMART during both projects and delivered the solution successfully, contributing to the success of increasing the global network of the sales and giving more opportunity for customers to buy tickets, and at the same time we modernized the ecommerce ecosystem with using the latest version of PSS.
Amadeus integration to DEEP has been completed
We are continuously improving our flagship product, DEEP Travel Reservation System with provider integrations and functional improvements. Now, we have completed the integration with Amadeus Web Services which enables DEEP to provide flight deals from over 500 airlines around the world. The integration also makes ticket issuing possible via the API, which allows any tour operators to fully automate the flight ticket booking process without any manual interaction. Customers can instantly get their confirmed tickets online. Amadeus also provides ancillary services like extra bags, legroom or seatmap.
The GDS integration extended DEEP airline offerings provided to book both dynamic packages or standalone flight tickets. DEEP Travel Reservation System is a comprehensive online reservation system for tour operators, travel agents, and airlines managing the booking process of third-party services like accommodation, airline ticket, transfer, insurance, and rental car as well as allowing businesses to add their locally contracted travel components.
About Amadeus
Amadeus is one of the top ten travel technology companies in the world, with more than 30 years of experience in the travel industry. Amadeus IT Group is a transaction processor for the global travel and tourism industry. It is structured around two key related areas — global distribution system and IT Solutions business area. More about Amadeus here: Amadeus
